A grip hole makes it easier to open the box or remove the goods.
Grip holes in cardboard reference boxes

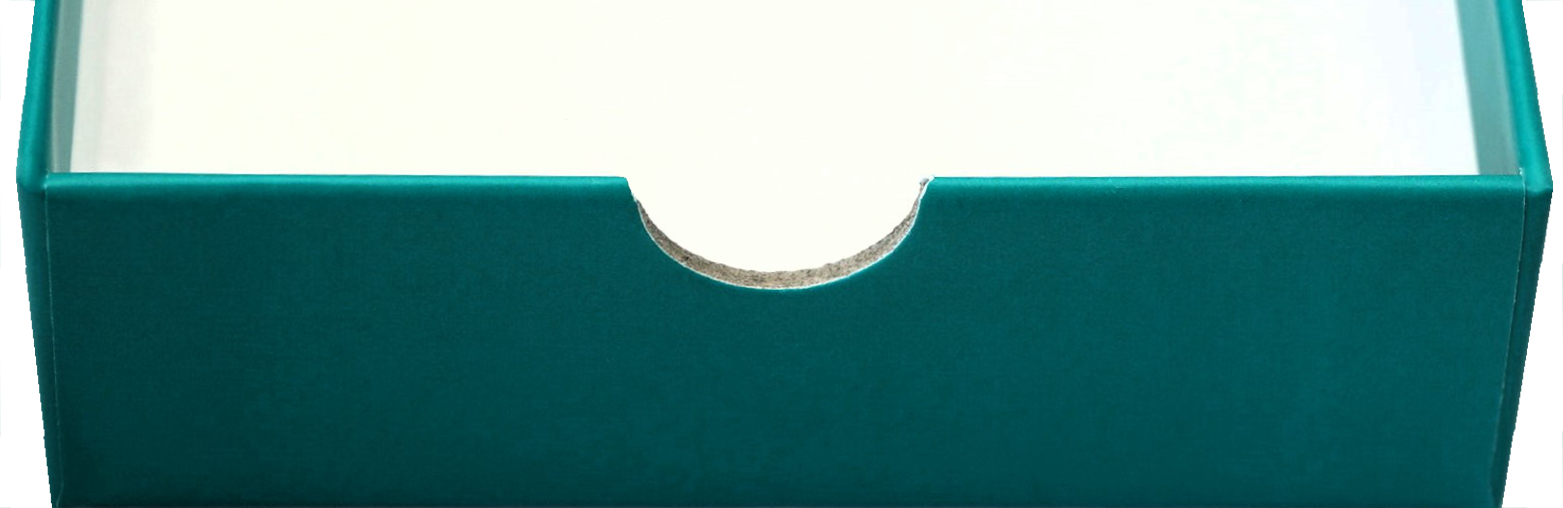

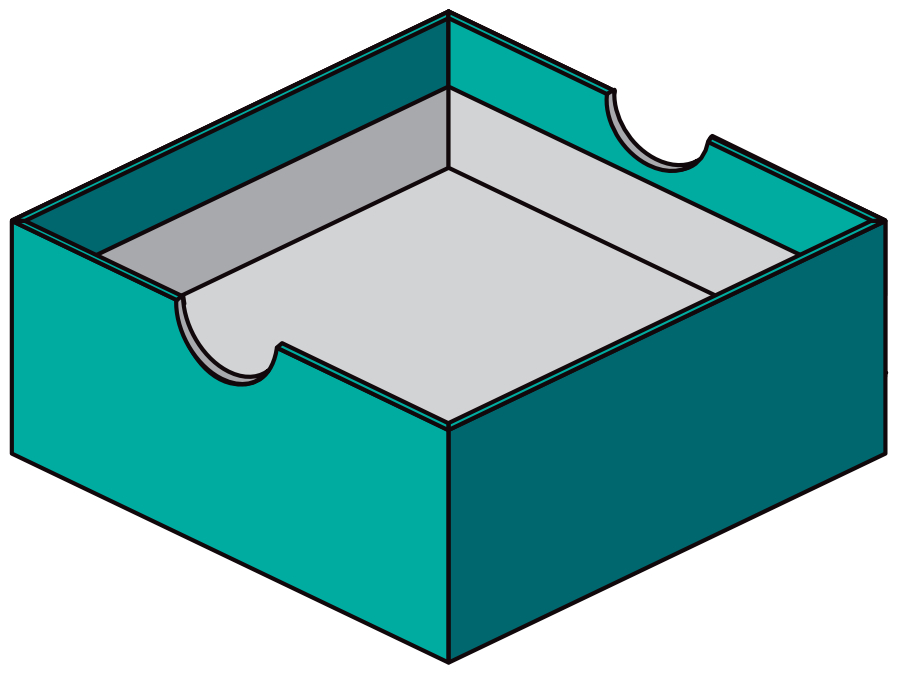

1st round grip hole
After covering the cardboard, a semi-circular grip hole is punched out: the Finger punching. The cardboard core is exposed at the punched edge and is visible.
Format: R = 20 mm

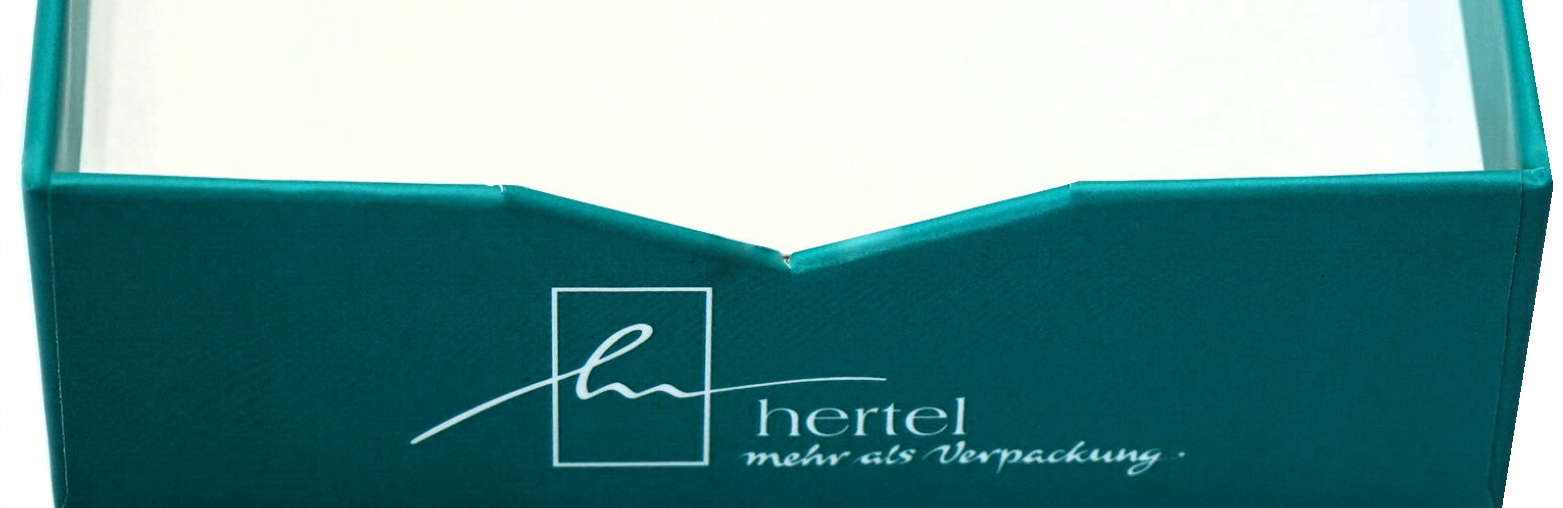

2nd grip hole square short
For square grip holes, the cover paper is fully glued around the edges. The cardboard core is covered and not visible.
Format: 50 x 8 mm
Format: 50 x 8 mm

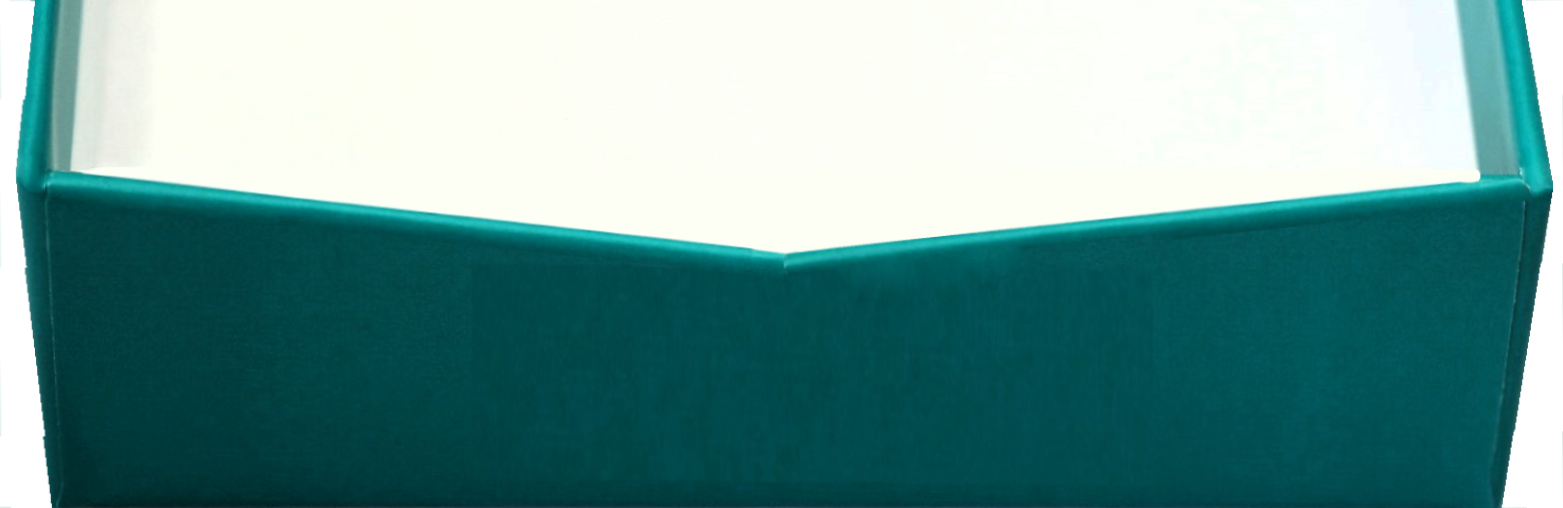

3. square long grip hole
For square grip holes, the cover paper is fully glued around the edges. The cardboard core is covered and not visible.
Format: Full width x 5 mm
Format: Full width x 5 mm
Finger holes in folding boxes
For folding boxes, the grip hole is already integrated into the cutting die. The shape, size and position are freely selectable.
A common variant is a round grip hole with a diameter of 20 mm.
Finger holes in inserts
The grip hole is also integrated into the cutting die for cardboard inserts.
Shape, size and position are freely selectable. Common variants are round and rectangular.
Another way to make it easier to remove the product is to attach a lifting strap.
